Grandglow 5000W three-phase 220V 230V 380V 400V industrial solar power generation system grid connected inverter

Shanghai Hongzhu power Technology Co., LTD
Contact Now

Grandglow 5000W three-phase 220V 230V 380V 400V industrial solar power generation system grid connected inverter

Network : SDK

Customized support : Software reengineering

Place of Origin : Hubei, China

Brand Name : Grandglow

Model Number : TLC5000

Type : DC/AC Inverters

Output Type : Triple

Output Current : 7.5A

Output Frequency : 50HZ

Size : 440x560x260mm

Weight : 27kgs

Application : Solar Power System

MTTP Efficiency : 99.5

Power factor : 0.99

Cooling Method : intelligent air cooling

Protecition degree : IP65

Display : LCD

Date interface : RS232/RS485/WIFI/GPRS

Certificate : CE/G83/IEC/TUV/SAA

Packaging Details : In Carton.

Port : Shanghai

Supply Ability : 500 Piece/Pieces per Month

Price : $417.00 - $500.00/pieces

Contact Now

Product Description

GRANDGLOW 5000 WATTS 3 PHASE 220V 230V 380V 400VAC ON GRID TIE INVERTER FOR INDUSTRY SOLAR POWER SYSTEM



Feature:

1. Max efficiency to 98.5%

2. Wide input voltage range, high efficient MPPT.

3. Multiple inverters can be operated in parallel.

4. Without insulated transformer,  strong IP65 protection.

5. Small and light, easy to installation.

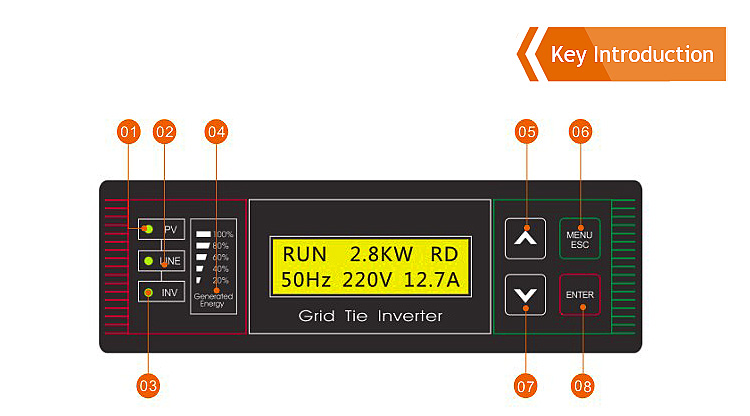

6. LCD display.



 Grandglow 5000W three-phase 220V 230V 380V 400V industrial solar power generation system grid connected inverterGrandglow 5000W three-phase 220V 230V 380V 400V industrial solar power generation system grid connected inverterGrandglow 5000W three-phase 220V 230V 380V 400V industrial solar power generation system grid connected inverterGrandglow 5000W three-phase 220V 230V 380V 400V industrial solar power generation system grid connected inverter





Maximum DC Input Power

5500W

Maximum DC Input Voltage

850VDC

Maximum DC Input Current

15A

MPPT Tracking Number/
Each Input String Number

1

MPPT Tracking Voltage Range

200-820VDC

Power Off/On Voltage

200/300VDC



AC Output

Rated Power

5000W

Voltage Range

Single Phase AC 400V(360-440V)
Adjustable according to different countries and regions requirement.

Rated Voltage Range

400VAC

Frequency

50Hz / 60Hz

Phase number

Three Phase

Power Factor

0.99

Max Output Current

7.5A

Current THD

At Rated Power And In The Sine Wave<3.5%

Max Efficiency

98%

Europe Efficiency

97%

MPPT Efficiency

99.5%

Structure

Protection Degree

IP65

Cooling Method

Intelligent Air Cooling

Noise

<50dB

Data Interfaces

RS 485/ RS 232/ (Standard), WiFi Modular(Optional)

Isolation type

Non-isolated

Standby Power Consumption

0W

LCD Display

LCD

DC Switch

Integration



Protection

Support

DC Input Switch, Anti-island, Output Over-current, Input Reverse Connection,
DC/AC Surge Protection, Insulation Resistance Testing, RCD Testing, Upgrade WIFI

RCD Testing

Support

Protection (Inverter)

Input Overvoltage, Output Short Circuit, Overload, Overheat

Protection (Grid)

Anti-islanding(IEEE1547), over/under voltage of grid, over/under frequency of grid.

General Parameters

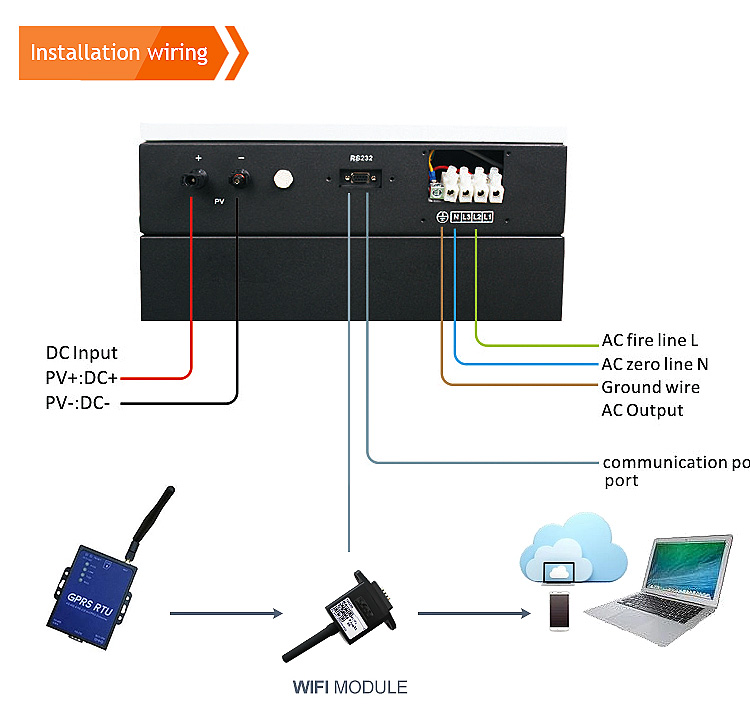

Input Terminal

MC4

Output Terminal

Connect Terminals

Topology

No Transformer

Warranty

5 Years Warranty, Can Be Extended to 10 years

State Grid Function

Yes

AC Switch

Integration

Operation temperature Range

Air Flow, -20  ~50  ( 45  )

Storage temperature

-25  ~ 60

Relative humidity

0~100%

Environment

No Corrosion Gas, Flammable Gas, Gas Fumes and Dust Etc

Altitude

6600 Feet 2000m, Max. 3000m

Size

                           440x560x260mm

Weight

27kgs
