Customized high quality 3 Phase 220VAC 15KW off grid inverter,Grandglow 15kW 3 phase 220V low frequency off grid solar inverter

Product Categories
Shanghai Hongzhu power Technology Co., LTD
Contact Now

Customized high quality 3 Phase 220VAC 15KW off grid inverter,Grandglow 15kW 3 phase 220V low frequency off grid solar inverter

Place of Origin : Hubei,China

Brand Name : Grandglow

Model Number : 15000T

Input Voltage : 96V

Output Voltage : 220V

Output Current : 136A

Output Frequency : 50Hz/60Hz

Output Type : Three Phase

Size : 400*700*740mm

Type : DC/AC Inverters

Inverter Efficiency : 85%

Warranty : 12 months

Weight : 143Kg

Packaging Details : Three Phase Wind Inverter On Grid 3000W 5000W Wind Generator Inverters are usually packed in cartons and pallets.

Port : Shanghai

Supply Ability : 1000 Piece/Pieces per Month

Price : $480.00/pieces 1-9 pieces

Contact Now

Product Overview

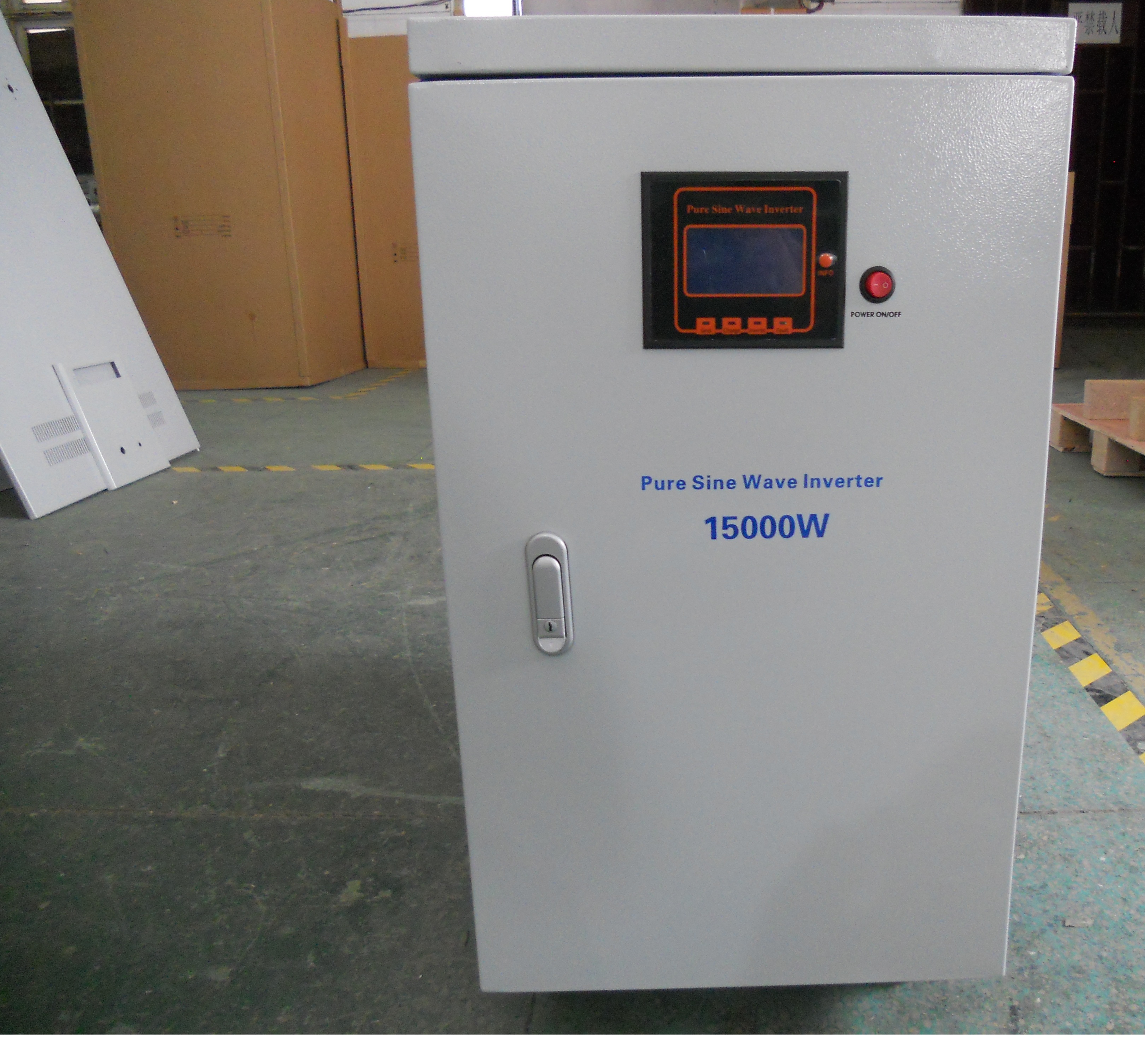

Grandglow 15000TS Off-Grid 3 Phase 220VAC output Inverter

Customized high Quality 3 Phase 96VDC input, 220VAC output off grid Inverter
FEATURES AT A GLANCE
Customized high quality 3 Phase 220VAC 15KW off grid inverter,Grandglow 15kW 3 phase 220V low frequency off grid solar inverter
Dual CPU single chip Intelligent Control
Output high quality pure sine wave AC power
With Perfect Protection function
Adopt CPU centralized Control with SMT tech.
Battery over-voltage, under-voltage protection
Optional function:
3-stage charging function with battery
State Grid automatic conversion


PRODUCT SPECIFICATIONS
No
Item
Grandglow 8000T
Grandglow 10000T
Grandglow 15000T S
1
Min. Input Voltage (DC)
96V
96V
96V (Std.120V)
2
Max.Discharge Current
109A
136A
163A
3
Input State Grid Voltage AC
380V
380V
220V (Std. 380V)
4
Output rated power
8000W
10000W
15000W
5
Output rated Voltage
12A *3
15A*3
23A*3
6
Output Rated Voltage (AC)
380V ± 5%

220V (Std. 380V)
7
Output Frequency
50Hz/60Hz


8
Size
400*700*740mm
400*700*740mm
400*700*740mm
9
Weight
100KGS
125KGS
143KGS
10
Output Wave Form
Pure Sine Wave
11
THD
＜3%
12
Working Temperature
-10℃~60℃
13
Noise
≤ 55dB
Successful Project
Customized high quality 3 Phase 220VAC 15KW off grid inverter,Grandglow 15kW 3 phase 220V low frequency off grid solar inverter
Project in Philippines
Customized high quality 3 Phase 220VAC 15KW off grid inverter,Grandglow 15kW 3 phase 220V low frequency off grid solar inverter

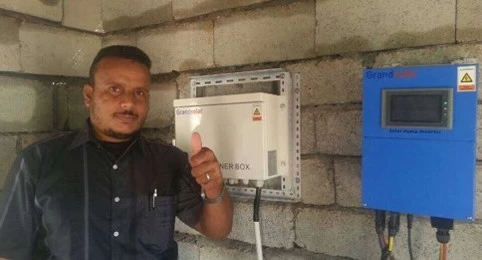

Project in Yemen
Customized high quality 3 Phase 220VAC 15KW off grid inverter,Grandglow 15kW 3 phase 220V low frequency off grid solar inverter

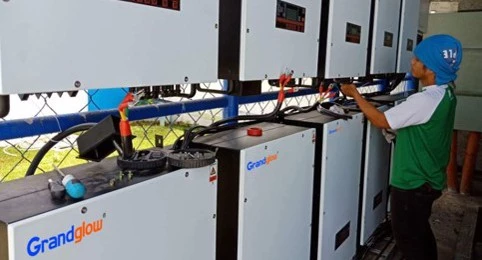

Project in Mexico
